Developer Guide

Acknowledgements

No third party libraries were used in the development of MediSaveContact.

Setting up, getting started

Refer to the guide Setting up and getting started.

Design

Tip: The .puml files used to create diagrams are in this document docs/diagrams folder. Refer to the PlantUML Tutorial at se-edu/guides to learn how to create and edit diagrams.

Architecture

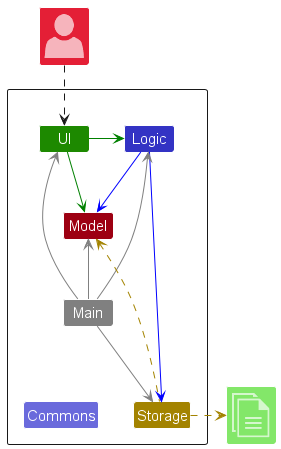

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

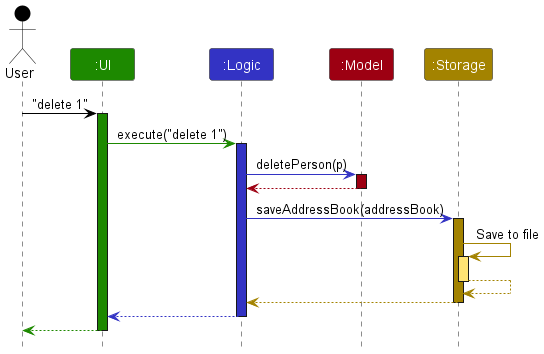

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command deletepatient 1.

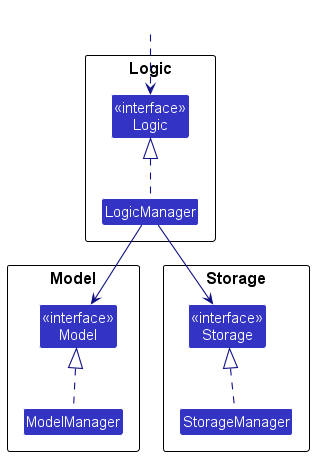

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point).

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

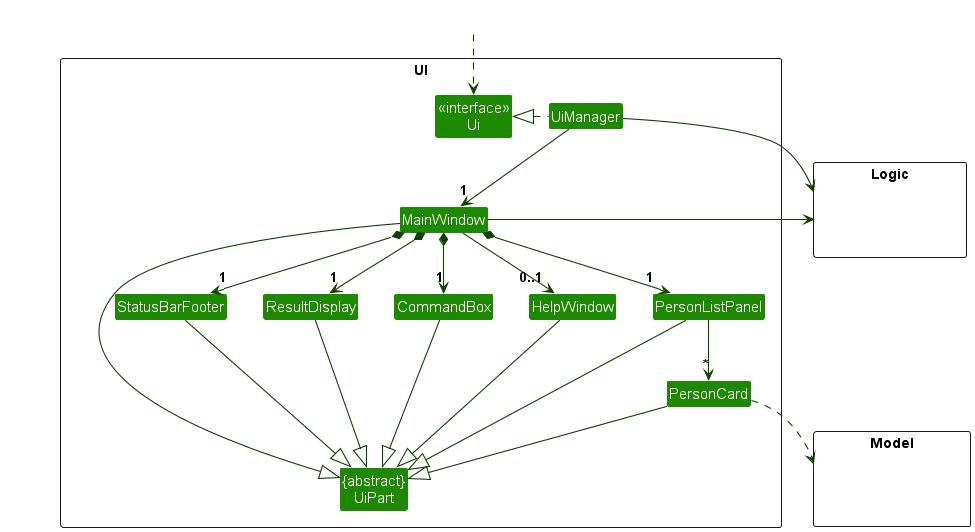

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

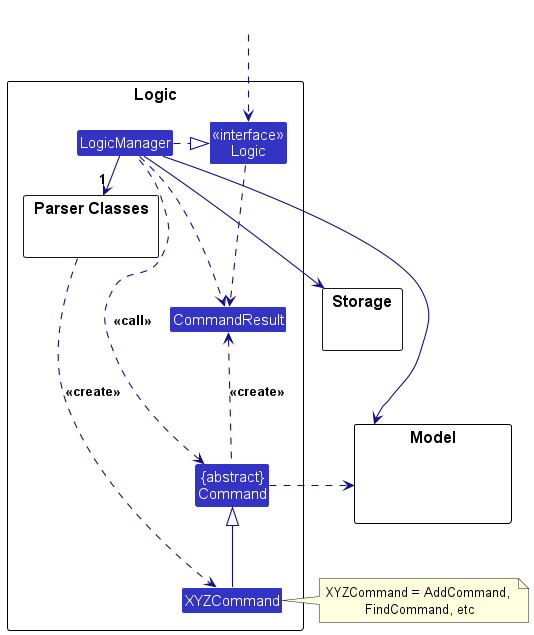

Here’s a (partial) class diagram of the Logic component:

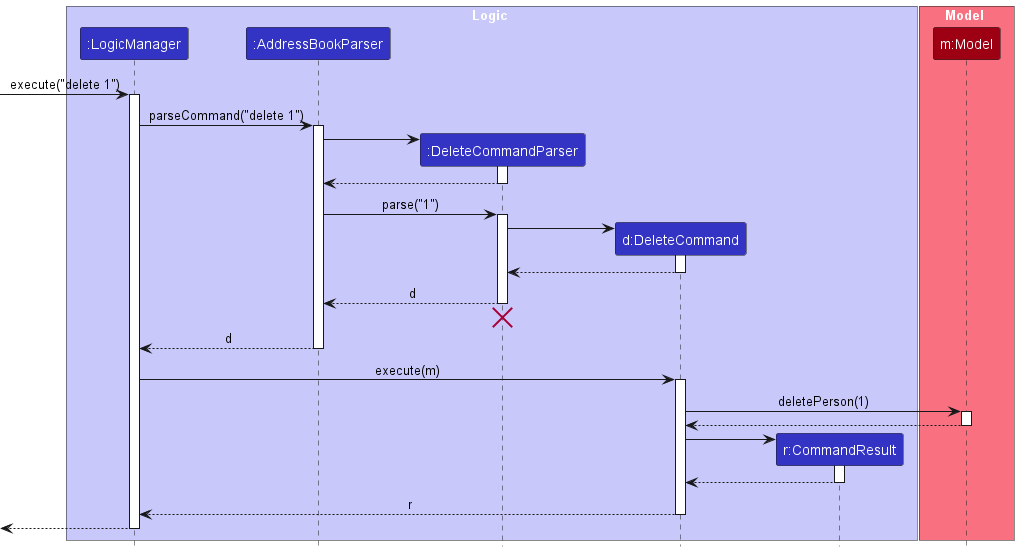

The sequence diagram below illustrates the interactions within the Logic component, taking execute("deletepatient 1") API call as an example.

Note: The lifeline for DeleteCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline continues till the end of diagram.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeletePatientCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a person).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

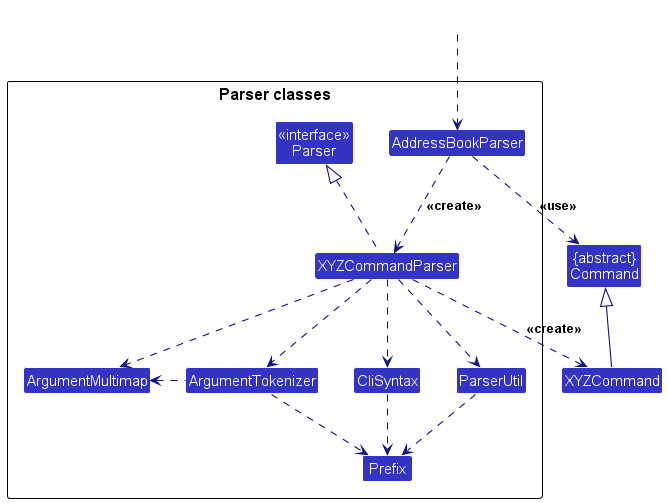

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

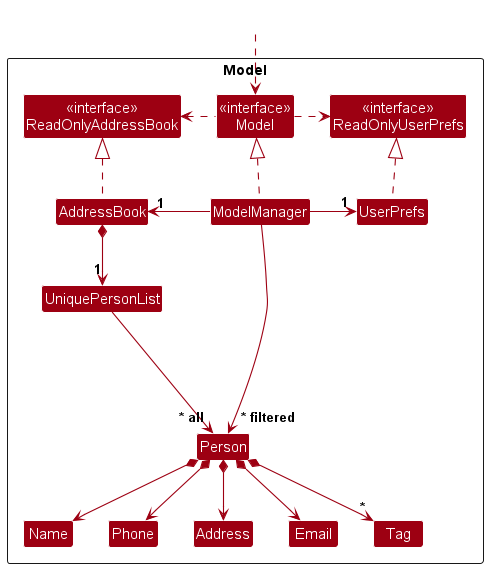

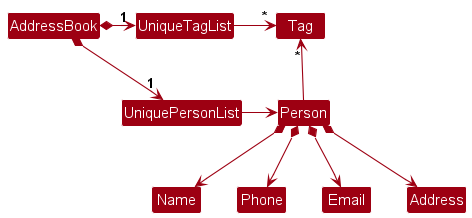

The Model component

• stores the address book data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• maintains a VersionedAddressBook to support undo commands
  • VersionAddressBook keeps the current AddressBook observed by the UI
  • On each command that mutates the database, Model will instruct VersionedAddressBook to snapshot the current state before executing command so undo() can revert to previous version
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

The Patient class

• Patient extends from Person.
• Patient would have additional fields Note and Appointment.
• A Patient can have any number of Note and Appointment.
• Patient can have 0 or 1 number of Caretaker.

The Caretaker class

• Caretaker extends from Person.
• Caretaker must have 1 Relationship.

Storage component

API : Storage.java

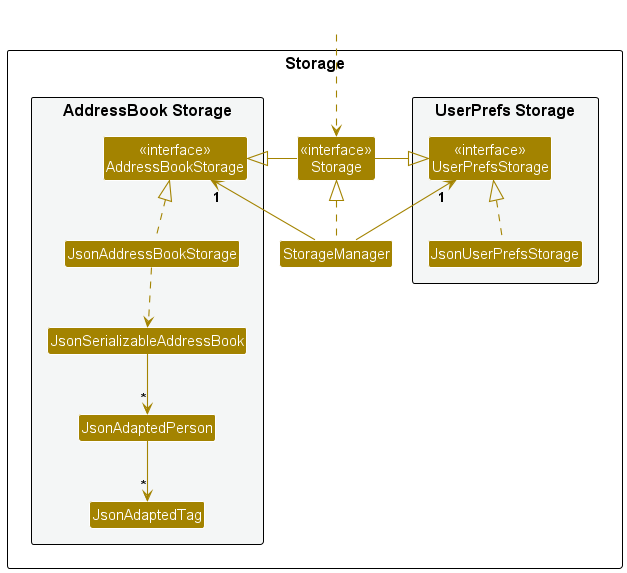

The Storage component,

• can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

Implementation

This section describes some noteworthy details on how certain features are implemented.

Undo feature

Overview

The proposed undo mechanism is facilitated by VersionedAddressBook. It wraps AddressBook with an undo history, stored internally as an internal stack of past states historyLog and a pointer to the current state current. It provides the following operations:

• VersionedAddressBook#update() —  Saves the current address book state into the history as a new snapshot.
• VersionedAddressBook#hasHistory() —  Returns true if there is at least one previous snapshot of AddressBook to restore.

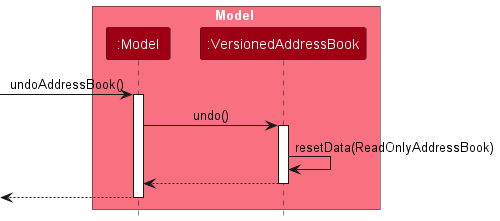

• VersionedAddressBook#undo() —  Restores the address book to a previous address book state from history
• VersionedAddressBook#getAddressBook() - Exposes live AddressBook instance that the UI is connected to

These operations are exposed in the Model interface

• Model operations that changes its content calls VersionedAddressBook#update() to create a snapshot before applying the change
• Model#canUndo() calls VersionedAddressBook#hasHistory()
• Model#undo() calls VersionedAddressBook#undo() and passes the new filtered list to the UI PREDICATE_SHOW_ALL_PERSONS to refresh the UI list to show the list of patients in the latest snapshot of AddressBook

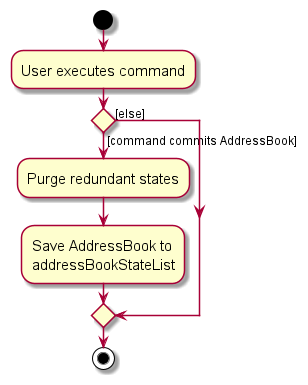

When we snapshot

Only mutating operations lead to snapshots. The ModelManager methods that mutate the book call update(), then perform the change

• Mutating examples which captures snapshot: patient, deletenote, editappt, clear, sortappt
• Non-mutating examples that does not capture snapshot: list, find, help

Example Usage and Behaviour

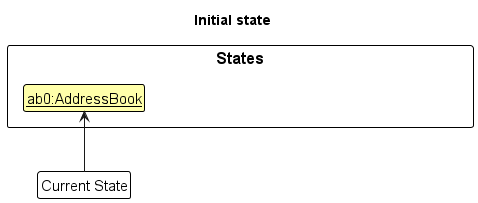

Step 1: Initial Launch VersionedAddressBook will have the initial AddressBook state as its current property (i.e current points to the newly initialised AddressBook

Step 2: User executes

deletepatient 5

Inside ModeManager.deletePerson():

1. update() snapshots the pre-delete state.
2. Deletes the 5th patient
3. Filtered list refreshes

Step 3: User executes

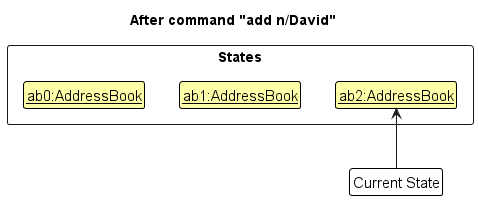

patient n/David p/98765432 a/Blk 312 tag/high

Inside ModelManager.addPerson():

1. update() snapshots the pre-add state/
2. Adds the new patient.
3. Filtered list refreshes

New AddressBook snapshot is pushed to historyLog

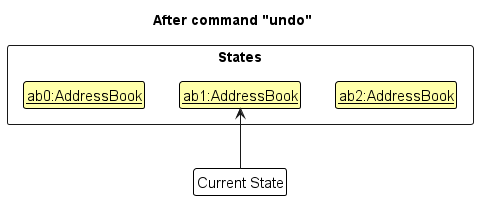

Step 4: User executes undo

1. UndoCommand checks canUndo()
2. model.undo() -> moves current pointer left by one, restores snapshot with resetData(...)
3. updateFilteredPersonList(PREDICATE_SHOW_ALL_PERSONS) clears any active filters, so full person UI is displayed

New AddressBook snapshot is pushed to historyLog

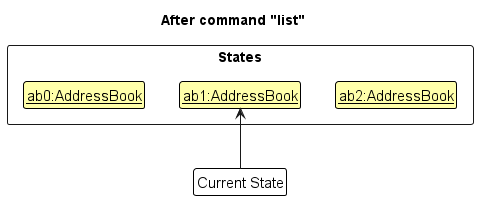

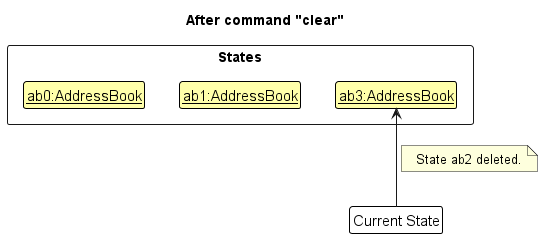

Step 5: User executes list historyLog and current pointer unchanged. List continues to show all patients.

Step 6: Behaviour summary

• Mutating commands (patient, deletepatient, editpatient, clear, appt, note, sortappt) snapshot before changing data
• Undo reverts one step, restore state of latest snapshot captured in historyLog, and show all patients
• Non-mutating commands (list, find, help) does not affect content of historyLog.

Design considerations:

Aspect: How undo executes:

• Alternative 1 (current choice): Whole-book snapshots in the model
  • Pros:
    • Consistent design, snapshot timing centralized in ModelManager
    • Minimal coupling between commands and undo logic;
    • Easier to test
  • Cons:
    • For sessions with large history of commands, can be more memory-intensive
• Alternative 2: Command-specific inverse operations
  • Pros:
    • Lower memory (eg: deleted Patient for deletepatient), potentially faster performance sessions with large history of commands.
  • Cons:
    • Harder to implement, every mutating command require precise inverse behaviour upon redo
    • Greater risk of encountering bugs across commands
    • Harder to evolve as number of commands increase

Why we chose Alternative 1:

• It keeps our codebase easy to maintain as we add more mutating command. Every reversal follows a history log with minimal guesswork and edge cases, strengthening clarity and maintainability of system. We can introduce target optimisations, if memory scale becomes a concern later on.

Appointment feature

Overview

The appointment feature lets each Patient maintain a chronologically sorted list of upcoming visits. The workflow mirrors the undo/redo walkthrough above: start with a command issued at the CLI, flow through parsing, run model validations, and finally persist the state with undo support. Three commands participate:

• appt creates a new appointment for a patient.
• editappt updates an existing appointment.
• deleteappt removes an appointment.

Each command operates on the currently displayed list, reuses Command#ensureValidPatientIndex(...) for index safety, and surfaces results via Messages.shortFormat(...) so the UI stays consistent.

Example usage scenario

Step 1. The user runs appt 3 d/31-12-2025 t/13:00 note/Year-end review. AddressBookParser dispatches the command to AddAppointmentCommandParser, which validates the prefixes, parses the index, and builds the domain values (Index, String date/time, optional Note).

Step 2. AddAppointmentCommand#execute(...) retrieves patient 3 from the filtered list, instantiates a new Appointment, and delegates to ModelManager#addAppointment(...).

Step 3. The model performs duplicate checks, creates an updated immutable patient via Patient#addAppointment(...), and replaces the stored patient with Model#setPerson(...). VersionedAddressBook.update() snapshots the pre-change state so undo continues to work (the behaviour mirrors the undo/redo diagrams above).

Step 4. The command formats feedback (Appointment created: <formatted appointment>) using the freshly constructed appointment rather than relying on list ordering, then returns the CommandResult to the UI.

editappt and deleteappt follow the same lifecycle: parse input, locate the patient, validate the target appointment, produce an updated Patient instance, and persist it through the model. Undoing any of these commands restores the previous snapshot just like the undo walkthrough earlier.

Command implementation notes

• AddressBookParser tokenises raw CLI input and dispatches to the relevant AppointmentCommandParser. Each parser enforces mandatory prefixes, rejects duplicates via ArgumentMultimap#verifyNoDuplicatePrefixesFor(...), and converts user input into domain objects with ParserUtil. Parse-time failures throw ParseException, surfacing format errors before model work begins.
• AddAppointmentCommand constructs the appointment immediately, which ensures invalid dates/times fail fast and allows the same instance to be reused in the success message.
• EditAppointmentCommand extends AbstractEditCommand. Its EditAppointmentDescriptor records only the mutated fields and provides buildUpdatedAppointment(...) to merge edits with the original appointment. validateEdit(...) performs type checks (patient vs. caretaker), verifies the appointment index is within valid bounds (1 to size of appointments list), and checks for duplicate date/time combinations before any model mutation.
• DeleteAppointmentCommand extends AbstractDeleteCommand. After validation it copies the patient’s appointment list, removes the target entry, and delegates to the model to persist the updated patient.

Model updates and undo support

• ModelManager#addAppointment(...) is the entry point for creation. It guards against non-Patient targets, rebuilds the authoritative Appointment, and prevents double booking by comparing date/time pairs. Successful additions call Patient#addAppointment(...), which returns a new immutable patient with a sorted appointment list, before handing control to setPerson(...).
• Editing and deletion follow the same pattern by constructing new Patient instances with the edited or trimmed appointment lists. Because every mutation first invokes VersionedAddressBook.update(), undo/redo can revert or replay these operations without bespoke logic.
• Patient encapsulates appointment storage. Its mutators (addAppointment, editAppointment) copy the underlying list, apply the change, and sort the result, ensuring consumers never observe partially updated state.

Validation and error handling

• Appointment performs definitive validation: it parses dd-MM-uuuu and HH:mm values using strict ResolverStyle.STRICT mode to LocalDateTime and rejects past timestamps via MESSAGE_PAST_APPOINTMENT. The strict parsing ensures that invalid calendar dates (e.g., 31-02-2099) are rejected with MESSAGE_INVALID_DATE_TIME. Optional notes are wrapped in Note, inheriting the same length and character checks as patient notes.
• Duplicate detection resides in the model layer rather than the parser so both CLI and future UI surfaces share the same safeguard. Attempts to schedule the same date/time for a patient trigger MESSAGE_DUPLICATE_APPOINTMENT.
• Editing supports note removal by treating empty note/ inputs as EditAppointmentDescriptor#clearNote(). The descriptor tracks this through the noteCleared flag and isAnyFieldEdited() prevents no-op updates from reaching the model.

Testing guidance

• AddAppointmentCommandTest, EditAppointmentCommandTest, and DeleteAppointmentCommandTest cover the command flows, including duplicate detection, invalid indices, and success messaging.
• Parser-focused coverage in AddAppointmentCommandParserTest, EditAppointmentCommandParserTest, and DeleteAppointmentCommandParserTest verifies prefix handling, optional note parsing, and error reporting for malformed indices.
• PatientTest and AppointmentTest verify list immutability, chronological ordering, and validation logic so downstream commands can rely on the documented invariants.

Design considerations

Aspect: Where to enforce appointment invariants

• Alternative 1 (current choice): Validate in the model layer (Appointment, ModelManager).
  • Pros: Guarantees consistency for all entry points (CLI, potential GUI).
  • Cons: Commands need to surface validation errors up to the UI.
• Alternative 2: Validate in individual commands and parsers.
  • Pros: Simpler error messaging per command.
  • Cons: Tight coupling, duplicated checks, and increased risk when introducing new entry points.

All PlantUML sources are located alongside other diagrams in docs/diagrams/ for future edits.

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

Appendix: Requirements

Product scope

Target user profile:

• nurses who support patients outside of hospital settings
• juggle multiple patients, each with unique care needs
• rely on quick access to essential information
• can type fast
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps

Value proposition: manage patient records faster than a typical mouse/GUI driven app

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Use cases

(For all use cases below, the System is the MediSaveContact and the Actor is the user, unless specified otherwise)

Use case 1: Delete a person

MSS

1. User requests to list persons
2. MediSaveContact shows a list of persons
3. User requests to delete a specific person in the list

4. MediSaveContact deletes the person

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. MediSaveContact shows an error message.

    Use case resumes at step 2.

Use case 2: Add an appointment to a patient

MSS

1. User requests to list persons
2. MediSaveContact shows a list of persons
3. User requests to update a specific person’s appointment

4. MediSaveContact updates the information

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. MediSaveContact shows an error message.

    Use case resumes at step 2.

• 3b. The given date is invalid.

  • 3b1. MediSaveContact shows an error message.

    Use case resumes at step 2.

• 3c. The appointment details duplicate an existing appointment for that patient.

  • 3c1. MediSaveContact shows an error message (“This appointment already exists in the address book”).

    Use case resumes at step 2.


Use case 3: Add a medical note to a patient

MSS

1. User requests to list persons
2. MediSaveContact shows a list of persons
3. User requests to update a specific person’s medical note

4. MediSaveContact updates the information

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. MediSaveContact shows an error message.

    Use case resumes at step 2.

• 3b. The given note is empty.

  • 3b1. MediSaveContact shows an error message.

    Use case resumes at step 2.

• 3c. The given note is too long.

  • 3c1. MediSaveContact shows an error message.

    Use case resumes at step 2.

Non-Functional Requirements

Business

1. Single nurse profile can support <= 5000 patients
2. A nurse cannot create two appointments that overlap for the same patient

   Constraints

3. Release is one JAR <= 100 MB, runs via java -jar
4. Features work 100% offline, no dependency on external servers

   Performance

5. Listing up to 1000 patients render first screen in <300 ms and filter/search updates re-render in <150 ms
6. Prompt can be typed in <2.5s from java -jar

   Quality

7. User can perform commands without using a mouse
8. Proper response to invalid commands (showing expected syntax, reason why commands are invalid, etc.)

   Technical

9. Should work on any mainstream OS as long as it has Java 17 or above installed.

   Process

10. Project to be conducted in Brownfield increments, by every week, a new release of the product is made available

    Notes about project scope

11. The product should maintain a single local profile, no access to the same data file by another user

Glossary

• Mainstream OS: Windows, Linux, Unix, macOS
• JAR: Java Archive – A package file format used to aggregate many Java class files, associated metadata, and resources into a single file for distribution
• GUI: Graphical User Interface – A form of user interface that allows users to interact with their devices through graphical icons and visual indicators
• Patient records: Information related to a patient (personal details, notes, appointments)
• Medical note: A string field with a maximum length of 200 characters, intended for storing patient specific notes such as diagnosis and medications
• Appointment: Patient’s next appointment. Stores a DateTime object, and cannot be set to the past

Appendix: Instructions for manual testing

Given below are instructions to test the app manually. They cover the core MediSaveContact features and a handful of negative scenarios. After completing these scripts, continue with exploratory testing to uncover edge cases specific to your environment.

Launch and shutdown

1. Initial launch
   1. Download the release JAR and place it in an empty folder (e.g. ~/medisavecontact-test).
   2. Double-click (Windows) or run java -jar medisavecontact.jar (Linux/macOS).
      Expected: The GUI opens with sample patients loaded. Status bar shows the data file path.
2. Saving window preferences
   1. Resize the window and drag it to a different monitor corner.
   2. Close the app using the window close button.
   3. Re-launch the app.
      Expected: The remembered size and position are restored.
3. Exit command
   1. Enter exit.
      Expected: Application shuts down cleanly with no lingering Java processes.

Managing patients

1. Adding a patient
   1. Ensure the list view shows the full patient list via list.
   2. Execute patient n/Lim Siew Mei p/93334444 a/88 Redhill Lane tag/high.
      Expected: Patient is appended to the list with the supplied details and tag/HIGH. Feedback panel confirms creation.
2. Preventing duplicates
   1. Repeat the exact command above.
      Expected: Error message “This patient already exists in MediSaveContact.”
3. Editing a patient
   1. Run editpatient INDEX p/98887777 tag/medium, replacing INDEX with the position of the patient added earlier.
      Expected: Phone number and tag update; other details remain unchanged.
   2. Run editpatient INDEX with no additional prefixes.
      Expected: Error “At least one field to edit must be provided.”
4. Deleting and clearing
   1. Execute deletepatient INDEX on the same patient.
      Expected: Patient disappears from the list; success message shows the removed details.
   2. Execute deletepatient 0 and deletepatient 999.
      Expected: Both fail with invalid index messages.
   3. (Optional) Run clear to wipe all data.
      Expected: Patient list becomes empty. Restore data manually from a backup JSON file after this test.

Managing caretakers

1. Assigning a caretaker
   1. With patients listed, pick one without a caretaker (or add a fresh patient).
   2. Execute caretaker INDEX n/Lee Wei Jun p/90001234 a/Blk 22 Pasir Ris r/Brother.
      Expected: Targeted Patient card displays a caretaker section with the supplied details.
2. Validation
   1. Run caretaker INDEX ... on the same patient again.
      Expected: Error stating the patient already has a caretaker.
   2. Run caretaker INDEX n/ p/98329821 a/Yishun Ave 5 Block 105 #05-2046 r/Father with a blank name, on a patient without a caretaker.
      Expected: Validation error referencing the name constraint.
3. Editing and removing caretaker
   1. Execute editcaretaker INDEX p/98889999.
      Expected: Caretaker phone updates in the UI and success message.
   2. Execute deletecaretaker INDEX.
      Expected: Caretaker section disappears. Running the command again should return an error indicating no caretaker exists.

Managing notes

1. Adding a note
   1. Run note INDEX note/Patient responded well to medication.
      Expected: Note appears under the patient with a green success message.
2. Character limit enforcement
   1. Attempt note INDEX note/ followed by 250 characters.
      Expected: Error “Note exceeds maximum length of 200 characters.”
   2. Execute note INDEX note/ (whitespace only).
      Expected: Error about blank notes.
3. Editing and deleting notes
   1. Run editnote INDEX i/ITEM_INDEX note/Stable vitals recorded.
      Expected: Note content updates in place.
   2. Run deletenote INDEX i/ITEM_INDEX.
      Expected: Note disappears; repeated deletion of the same ITEM_INDEX fails gracefully.

Managing appointments

1. Adding an appointment
   1. Prepare a patient (INDEX) and run appt INDEX d/01-12-2025 t/14:30 note/Follow-up blood test.
      Expected: Appointment list for the patient shows the new entry. Feedback confirms addition.
2. Rejecting invalid dates/times
   1. Run appt INDEX d/01-01-2020 t/09:00 (past date).
      Expected: Error describing date/time constraint.
   2. Run appt INDEX d/40-13-2025 t/25:61.
      Expected: Parsing error for invalid date/time.
3. Editing and deleting appointments
   1. Add a second appointment, then run editappt INDEX i/ITEM_INDEX t/16:00 note/Updated timing.
      Expected: Specified appointment updates the time and note.
   2. Execute deleteappt INDEX i/ITEM_INDEX on the updated appointment.
      Expected: Appointment is removed. Trying to delete the same index again should fail if there are no more.

Searching and filtering

1. Execute find tan after the sample data is restored.
   Expected: Only patients whose names contain “tan” (case-insensitive) remain in the list, with indices renumbered.
2. Run list.
   Expected: Full patient list is restored.
3. Combine with other commands: run find high, then try deletepatient 1.
   Expected: Deletes the first patient in the filtered view; confirm via list that the correct patient was removed.

Data persistence and autosave

1. Add a unique patient and caretaker as above.
2. Close the app using exit.
3. Reopen MediSaveContact.
   Expected: The newly added patient and caretaker are still present, demonstrating autosave.
4. Navigate to data/medisavecontact.json and confirm the new patient entry exists in the JSON.

Handling invalid commands

1. Enter a random string such as foobar.
   Expected: Error “Unknown command” with a hint to use help.
2. Enter a valid command with missing prefixes, e.g. patient John.
   Expected: Error message showing the correct usage format.
3. Enter extra prefixes for commands that should ignore them, e.g. clear 123.
   Expected: Command succeeds and extraneous tokens are ignored.

Recovering from corrupted storage files

1. Close the app. Open data/medisavecontact.json in a text editor.
2. Remove a closing brace or truncate the file intentionally.
3. Relaunch MediSaveContact.
   Expected: Application starts with an empty data set and warns about the corrupted file.
4. Close the app, restore the JSON from a backup (or delete it to let the app regenerate sample data), then relaunch.
   Expected: Normal startup with data restored.

Resetting between test runs

• To return to the default sample data, delete data/medisavecontact.json before launching the application.
• Alternatively, keep a copy of a known-good JSON file and overwrite the data directory after each scenario. | view patients with ongoing medication | I can check who needs regular follow-ups | | * | nurse | export patient records to a text file | I can back up my data | | * | nurse | import patient records from a text file | I can restore data if needed | | * | nurse | tag patients with labels (e.g., “diabetes”, “rehab”) | I can organise them by health needs | | * | nurse | search patients by tag | I can quickly find patients with similar conditions |
